Divine Proportion

Geometry has two great treasures; one is the Theorem of Pythagoras; the other, the division of a line into extreme and mean ratio. The first we may compare to a measure of gold, the second we may name a precious jewel.--Johannes Kepler

A Nautilus Shell

In a paragraph towards the end of his 1611 essay On the Six Cornered Snowflake Kepler mentions the “Divine Proportion" (Golden section) and the "fibonacci sequence” in practically the same breath as flowers and pentagons.

"It is in the likeness of this self-developing series that the faculty of propagation is, in my opinion, manifest: and so in a flower the authentic flag of this faculty is shown, the pentagon." (emphasis added)

What does Kepler mean here?

Pentagons tiling an area

First, we examine the nature of the logarithmic spiral, for reasons that will become evident below.

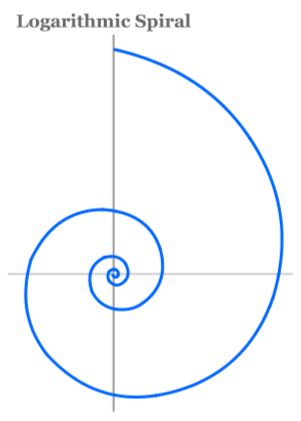

Logarithmic Spiral

The 17th century mathematician Jakob Bernoulli named the figure at right the Spira mirabilis or "miraculous spiral" and assigned it the following motto: "Eadem mutato resurgo" ("although changed, I rise again the same").

The logarithmic spiral does not change its shape as its size increases. This feature is known as self-similarity. If we could zoom into the coils of the figure near the origin and enlarge them, they would fit precisely on the larger spiral.

The spiral has another extraordinary property: turning by equal angles increases the distance from the pole to the spiral by equal ratios.


What are fibonacci numbers?

In the "fibonacci sequence," referenced by Kepler, each number is the sum of the two proceeding numbers (1, 2, 3, 5, 8, 13, 21...). Therefore, the sequence can be called a "self-developing" series.

Fibonacci Sequence

Interestingly, dividing two adjacent fibonacci number (8/5 or 21/13, for example) by each other produces increasingly precise approximation of the "Divine Proportion," which we will explore below, as the numbers grow larger.


Philotaxis

Why does Kepler mention flowers?

Scientists, beginning with Leonardo da Vinci, observed that the displacement of leaves around a stem occurs in patterns defined by the fibonacci series.

This phenomenon is known as "philotaxis."

Rose

In the case of roses an angle that is congruent to 360 degrees by the Divine Proportion (137.5 degrees) separates the petals from each other.

spiraling portions of a plant

In other plants the number of leaves measured around a screw-type displacement between one leaf and the leaf directly above it, and the number of rows separating the two are both fibonacci numbers.

The same phenomenon occurs in pine cones and the hearts of sunflowers.

How is the Divine Proportion related to the pentagon?

The Divine Proportion plays an essential role in the construction of the pentagon and five-fold symmetry.

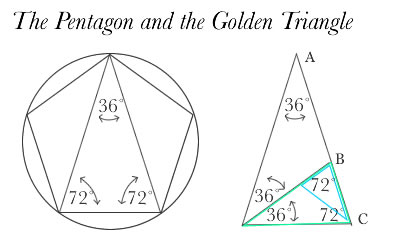

To see this, examine the diagonals in a pentagon. The ratio of the diagonal to the side of a pentagon is the Divine Proportion. Moreover, the diagonals create an isosceles triangle (where two of the three sides are equal) with angles of 72 degrees and 36 degrees. This triangle can be reproduced inside itself to infinity (in a "self-developing" manner), as shown below.

spiraling portions of a plant

In constructions of tiled pentagons, every segment is smaller than its predecessor by a factor equal to the Divine Proportion.

spiraling portions of a plant

The ratio of "a" to "b" is the Divine Proportion, the ratio of "b" to "c" is the Divine Proportion, and so on.

How does this relate to the logarithmic spiral?

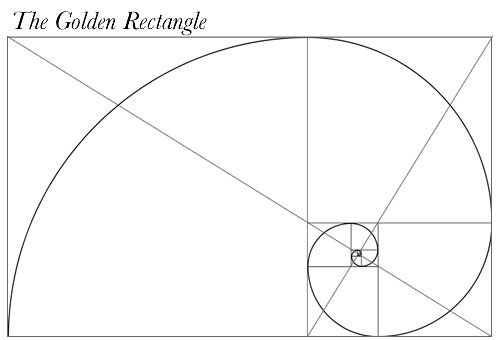

In a rectangle where the ratio of the larger side to the smaller one is the Divine Proportion, the ratio of the sides of the "daughter rectangles" will still conform to the Divine Proportion when squares are cut from the original rectangle. Connecting the points where this series of "whirling squares" divides the sides will generate a logarithmic spiral that coils inward.

spiraling portions of a plant

Similarly, connecting the vertices of the nested "Golden Triangles" inside the pentagon will produce the logarithmic spiral as well.

spiraling portions of a plant

What is the "extreme and mean ratio?"

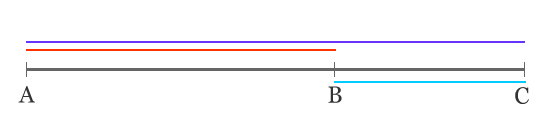

Euclid defines the "extreme and mean ratio," or "Divine Proportion," as the following relationship: When a line is divided such that the smaller section of the line (BC) is related to the larger section of the line (AC) in the same ratio as the larger section is related to the whole line (AC), then the line is divided in the Divine Proportion.

spiraling portions of a plant
See if you can manipulate the position of point B to create a line divided in the Divine Proportion.

Move the slider to move point B:
Whole Line
length
Shorter Segment
length
Longer Segment
length
AC
Ratio of smaller section to the larger section
Ratio of larger section to the whole
Result:
